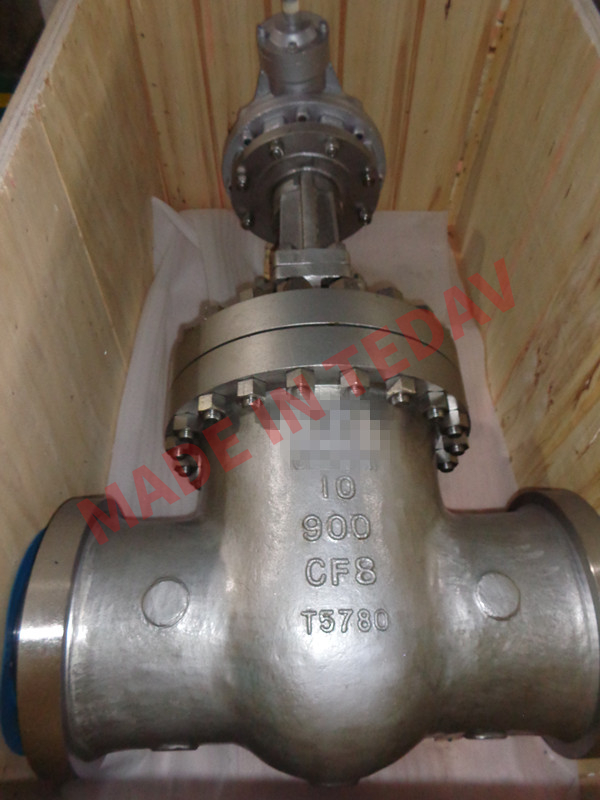

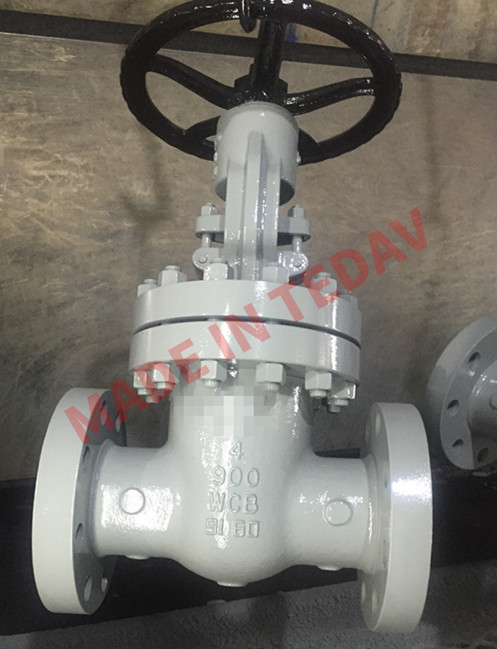

Gate Valve

Type: Outside screw and yoke(OS&Y), Non-Rising Stem
Size: NPS 2''–48''/DN50–DN1200
Rating: Class 150 – Class2500/PN10–PN420
Operation: Handwheel, Gear Box, Actuator

Design& manufacture: API 600, ASME B16.34, DIN 3352
Face to Face length: ASME B16.10, API 6D, EN 558.1, DIN 3202
Flange ends: ASME B16.5, ASME B14.47, EN 1092-1
Butt-weld ends: ASME B16.25, EN 12627
Inspection and test: API 598, EN 12266
